NOTE: I am offering a budget Heat Shield Kit that uses 1/8in PVC. The kit includes 3 boards all the same size which the buyer must cut to shape.

Price: $7.50 plus $6.45 Shipping and Handling to USA (USPS Priority Mail Flat Rate Envelope)

These boards are easy to cut with a standard box cutter or regular cutting tool.

Note: I can get 2 sets into one USPS Flat Rate Envelope for $6.45.

And can get up to 10 sets into a larger Flat Rate Box for $13.45.

Here is some test data:

http://www.zbestvalue.com/HeatshieldsColorTestJuly3-2011b.htm



PVC Heat Shield Kit by zbestvalue

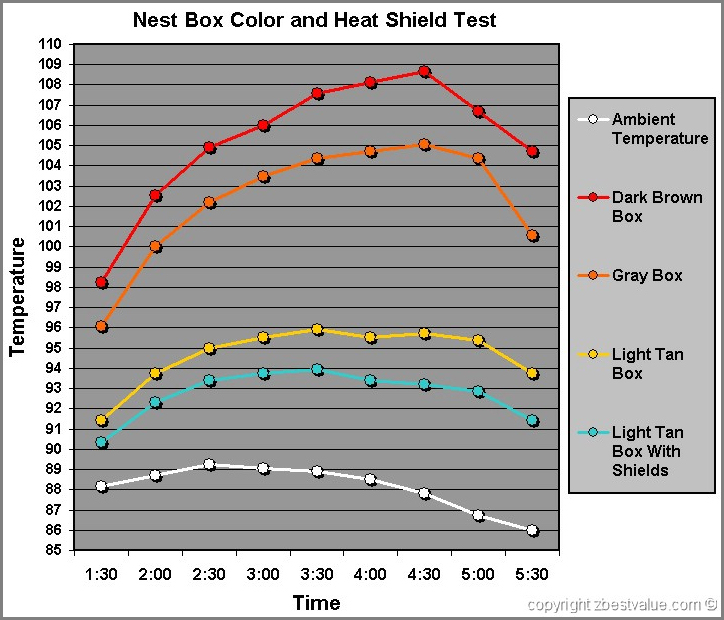

Space age closed cell 1/8inch PVC boards protect your birds from excessive heat in the summer by dissipating the sun's rays. They will not warp or crack like wood and will outlast any box you have. Especially useful for boxes mounted out in the full sun. In full sun an unprotected box can have an interior temperature of up to 2.52 degrees fahrenheit  hotter than a protected box. (assuming both boxes are painted light tan) See chart below and also video of tests at my youtube channel.

http://www.youtube.com/user/agile1111#p/u/0/zJ-VF2DqO80

Note that color is the most important factor to reduce heat in your boxes.

DO NOT USE DARK COLORED BOXES IN THE FULL SUN!!

At an ambient  temperature of only 87.8F my dark test box was 108.68F inside. This temperature could kill baby birds!

UPDATE!  Please see new data using real weathered boxes at link below. Also added to new tests are new unpainted nest boxes.

http://www.zbestvalue.com/HeatshieldsColorTestReportZBV.htm

I also added a gray box to the test to simulate a weathered natural box with no paint. This gray box was a little cooler than the dark brown box but still performed poorly as seen below.

Use a LIGHT colored paint to keep your boxes as cool as possible.

There are two other benefits of the shields besides temperature. The shields protect the paint job on the box from the sun. And the top shield which extends over the front and sides adds a layer of protection against the weather and predators.

Shield kit contains 3 shields for your nest box and everything you need to install including directions. PVC is white and can be spray painted any color you choose to match your existing box. To order please send us photos of your box if possible and also pole diameter if used. In the US since it is recommended that boxes face north or east you will need a Top Shield, a West Shield and a South Shield for best protection.



The above box is available from the-woodpecker. It's the (Deluxe) Model.

http://shop.ebay.com/the-woodpecker/m.html?_nkw=&_armrs=1&_from=&_ipg=&_trksid=p4340



Click picture above to see the test video.

Bluebirds have evolved over thousands of years to use natural cavities in trees for nesting. In their natural setting these nest sites have shade and the insulation of the tree's trunk to keep the temperatures down. So we can see that a nest box on a pole out in the open sun has neither of these. No shade (unless you put the box under a tree) and relatively little insulation as outlined above.

By putting heat shields on the boxes this makes the them more similar to a tree hole than without them.



Space age closed cell 1/8in Sintra PVC boards protect your birds from excessive heat in the summer by dissipating the sun's rays. They will not warp or crack like wood and will outlast any box you have. Especially useful for boxes mounted out in the full sun. In full sun an unprotected box can have an interior temperature of up to 13F degrees hotter than the outside ambient temperature (depending on the color of the box). If your interior temperatures get up to 105-107 degrees inside this is the danger zone for small chicks.

(See test information below)

These boards are 1/8in thick and easy to cut with regular box cutter or similar cutting tool. This means you can save money by cutting your own shields from this kit.

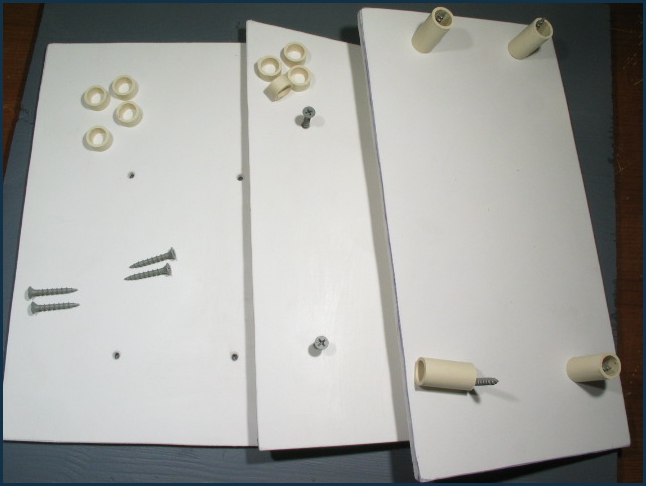

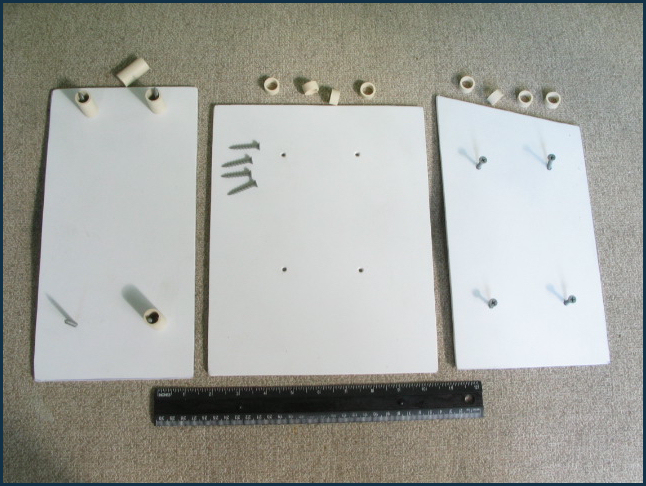

Kit contains 3 (three) rectangular boards each one being 7.75 inches x 11.75 inches. Also included are 8 (eight) 5/16in high spacers for side and top boards and 4 (four) 1 inch high spacers for back shield. If you need different length spacers let me know. Exterior screws are also included.

 Shield kit contains 3 shields  for your nest box and everything you need to install including directions. PVC is white and can be spray painted any color you choose to match your existing box.

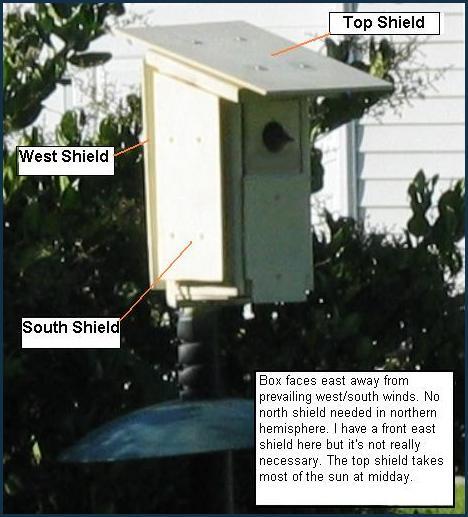

Typically if your boxes face north or east you will need a Top Shield, a West Shield, and a South Shield for best protection.

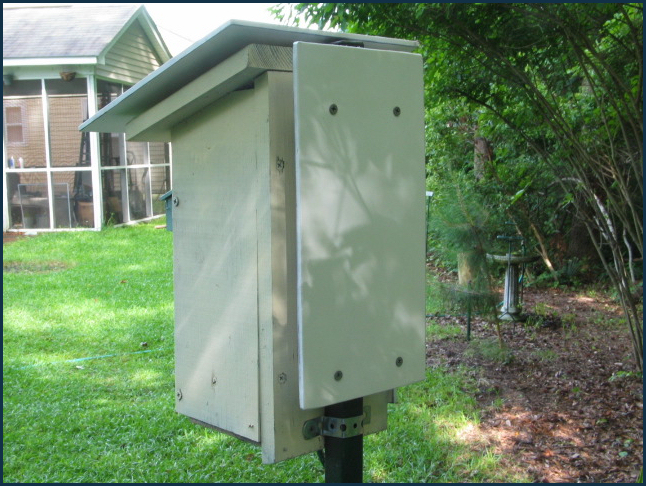

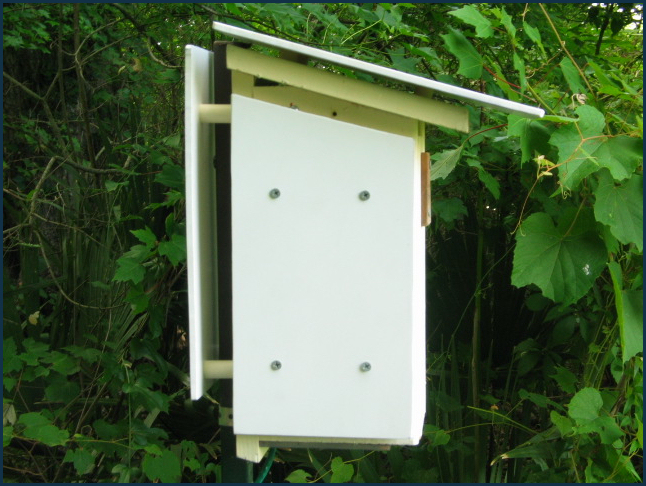

Box not included in auction. Photo used to show typical installation. Buyer must cut shields to size needed.

Nest Box Not Included

Nest Box Not Included

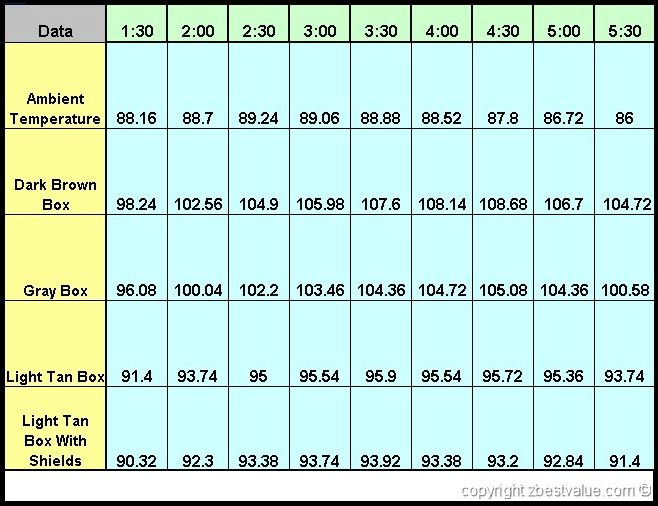

Please check out the data below. Click link to see video of the complete test.

Please paint your boxes a light color! At an ambient  temperature of only 93.4F my weathered test box was 107.1F inside. This temperature could kill baby birds!

Video Link:

Bird House Heat Shield Color Test July 11 2011‬‏ - YouTube



There are also more tests available on youtube, just search my channel.



Lastly if you are ordering a set of heat shields please state the type of pole mounting that you have. See below photos for the two main types. Most bird boxes are either back mounted or center mounted.







More results of heat testing in boxes:

http://www.zbestvalue.com/HeatshieldsColorTestNavigation1.htm
